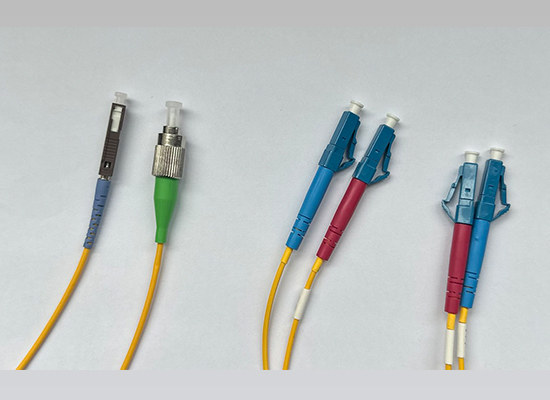

Optical Patchcord & Pigtail
- Features
- TIA/ EIA 604 compatible
- 0.9 and 2.0 to 3.0mm cable compatible
- Excellent flexibility and small bend radius
- High tensile strength
- Environmental stable
- Customized type is available
- Applications
- Telecommunications
- CATV Networks
- Local Area Network
Overview
Optical fiber patchcord is a length of fiber cabling fitted with SC, FC, LC, ST, MPO or other fiber connectors at each end Patch cord also come in hybrid varieties with one type of connector on one end and another type of connector on the other end.
Patchcord is used to connect end devices or network hardware to the structured cabling system.
| Parameter | Unit | Value | ||
|---|---|---|---|---|
| Single Mode | Multi Mode | |||
| Connector Type | SC, FC, LC, ST, MPO, MTP, etc | |||
| Insertion Loss | ≤dB | 0.25 | 0.30 | |
| MPO ≤0.3 | ||||
| Return Loss | UPC | ≥dB | 55 | 40 |
| APC | 60 | - | ||
| Operating Temperature | ℃ | -40 ~ +75 | ||
| Storage Temperature | ℃ | -40 ~ +85 | ||
