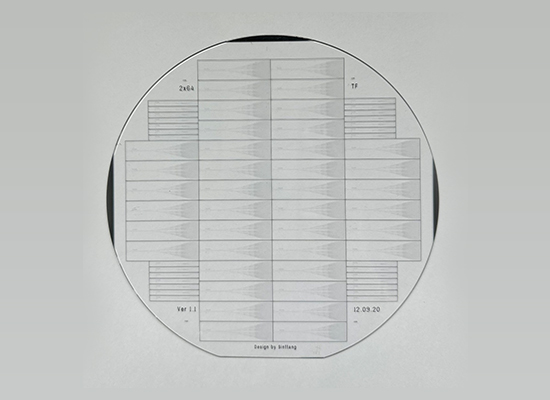

홈 > Product > PLC Splitter&Wafer > PLC Splitter Wafer

Features: 1xN and 2xN are available; 6 inch Size; Customized type is available

Applications: Fiber optic equipment & system; CATV Networks; Data communications; Passive optical networks

PLC Splitter Wafer 제원
Parameters	Unit	1x2	1x3	1x4	1x6	1x8F	1x8H	1x12	1x16	1x32	1x64	2x2	2x4	2x8	2x16	2x32	2x64
Channel Spacing	um	250	250	250	250	250	127	127	127	127	127	127	127	127	127	127	127
Insertion Loss	≤dB	3.5	5.6	6.7	8.6	9.8	9.8	11.9	13.0	16.2	19.6	3.8	7.0	10.2	13.5	16.8	20.5
Uniformity	≤dB	0.5	0.5	0.5	0.6	0.6	0.6	0.7	0.7	1.0	1.5	0.8	1.0	1.0	1.2	1.5	1.5
PDL	≤dB	0.15	0.15	0.15	0.15	0.2	0.2	0.2	0.2	0.2	0.2	0.25	0.25	0.25	0.3	0.3	0.3
Return Loss	≥dB	55
Directivity	≥dB	55
Material	-	Quartz
Operating Wavelength	nm	1,260 ~ 1,650
Operating Temperature	℃	-40 ~ +85
Operating Humidity	%RH	≤95
