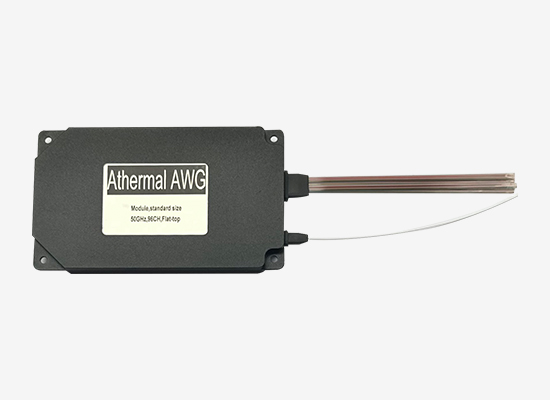

50GHz Spacing AAWG Module
Contact UsOverview
The Arrayed Waveguide Grating (AWG) is a cost-effective, high-performance DWDM Mux/Demuxdevice operating on 100GHz channel spacing in the C and L band ITU grid, without any electrical power needed.
AAWG offers low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. The products are Telcordia GR-1221-CORE and GR-1209-CORE qualified, and RoHS complaint.
| Parameters | Unit | Values | |
|---|---|---|---|
| Channel Number | - | 96 | |
| Channel Spacing | GHz | 50 | |
| Channel Wavelength | nm | 1,528.77 ~ 1,566.72 | |
| Channel Frequency | THz | 191.35 ~196.10 | |
| Reference Passband | GHz | 6.25 | |
| Wavelength Accuracy | pm | 50 | |
| Insertion Loss | dB | ≤6.0 | |
| Insertion Loss Uniformity | dB | ≤1.3 | |
| Passband Ripple | dB | ≤0.5 | |
| Bandwidth | @1db | nm | ≥0.2 |
| Isolation | Adjacent Channels | dB | ≥25 |
| Non-adjacent Channels | ≥30 | ||
| Total Crosstalk | dB | ≥22 | |
| Directivity | dB | ≥45 | |
| PDL | dB | ≤0.5 | |
| PMD | ps | ≤0.5 | |
| Return Loss | dB | ≥45 | |
| Chromatic Dispersion | ps/nm | 20 | |
| Continuous Optical Power | mw | ≤500 | |
| Operating Temperature | ℃ | -5 to +65 | |
| Storage Temperature | ℃ | -40 to +85 | |
| Relative Humidity | % | 5 to 90 | |

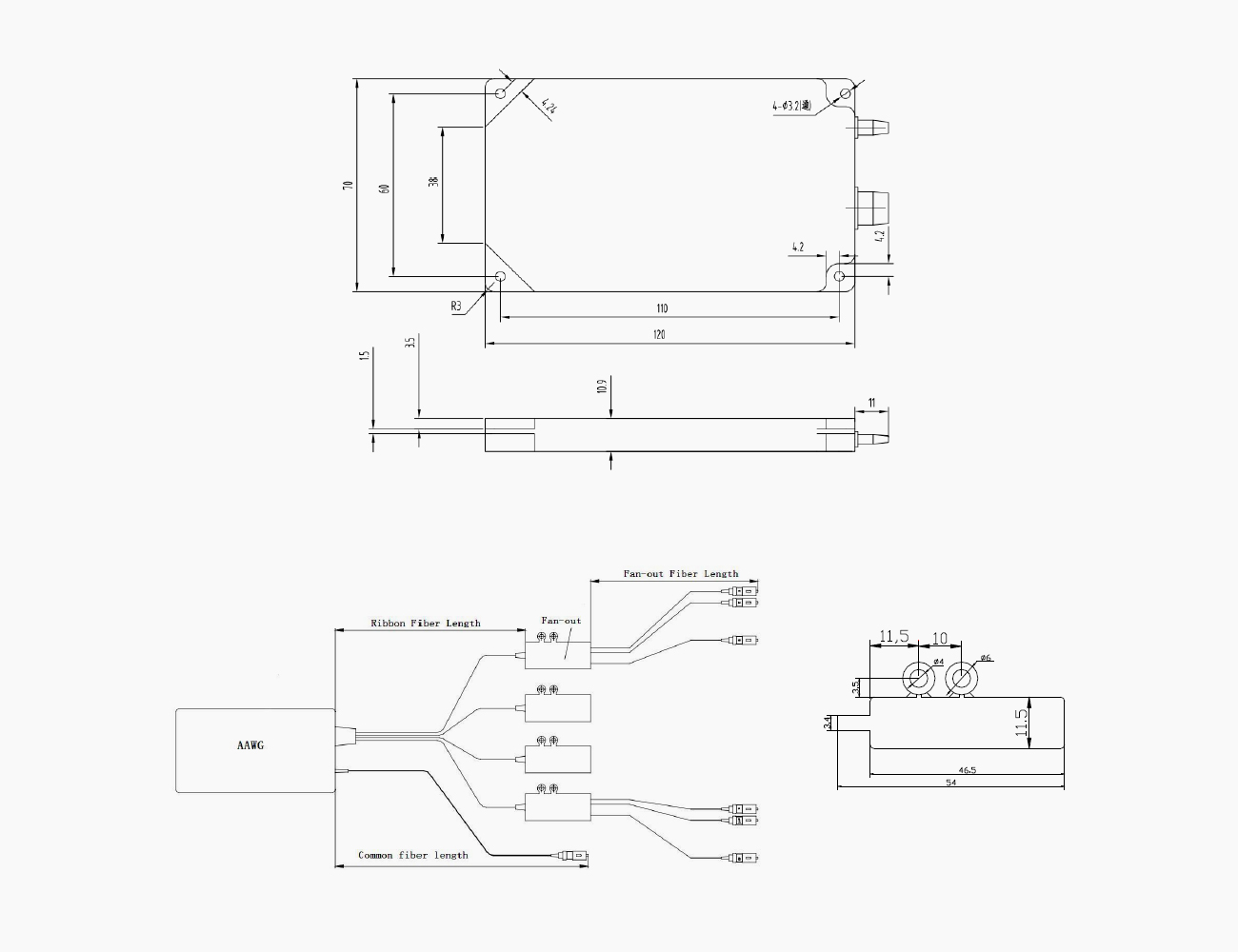

| Parameters | Specifications | Unit | |
|---|---|---|---|
| Fiber Type | SMF28e, with 0.9mm loose tube fiber | ||
| Fiber Length | Common Fiber | 1000±50 | mm |
| Ribbon Fiber | 500±50 | mm | |
| Fan-out | 500±50 | mm | |
| Optical Adaptors(all port) | LC/UPC | ||
