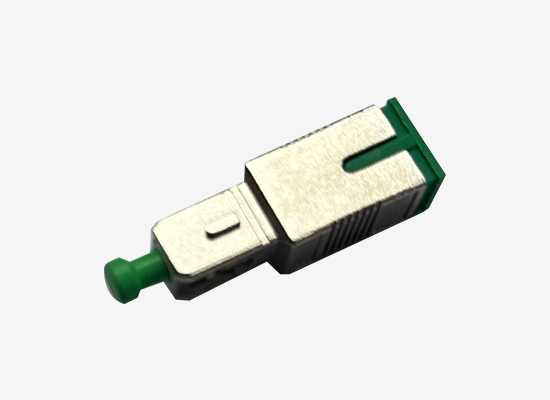

Pluggable CWDM/DWDM Device
- Features
- Wide Pass Band
- Low insertion Loss
- High stability and reliability
- SC/LC/FC Attenuator Type
- Applications
- WDM Network
- Telecommunication
- Access Network
- System Monitoring
- Transmitters and Fiber lasers
- Splitter Module Systems
| Parameters | Unit | Values |
|---|---|---|
| Operating Wavelength | nm | 1,260 ~ 1,650 |
| Channel Spacing(CWDM/100GHz/50GHz) | nm | 20, 0.8, 0.4 |
| Channel Passband(@-0.5dB) | nm | ≥7.5 ~ ≥6.5 , ≥0.11 |
| Pass Channel Insertion Loss | dB | ＜0.7 |
| Channel Ripple | dB | ＞0.35 |
| Isolation Loss | dB | ＞30 |
| Polarization Dependent Loss | dB | ＜0.2 |
| Return Loss | dB | ＞50 |
| Operation Temperature | ℃ | -30 ~ 80 |
