MCF FIFO (Fan-In/Fan-Out) Module
- Features
- Supports LC/MT/MPO pigtail for seamless network integration.
- Customized packaging available to meet specific architectural needs.
- Applications
- Interconnection between single-core fiber and multi-core fiber
- Telecom Central Office Upgrades
- Silicon Photonics Intergration.
- Optimized for Data Center Interconnects (DCI) to reduce fiber count.
Overview

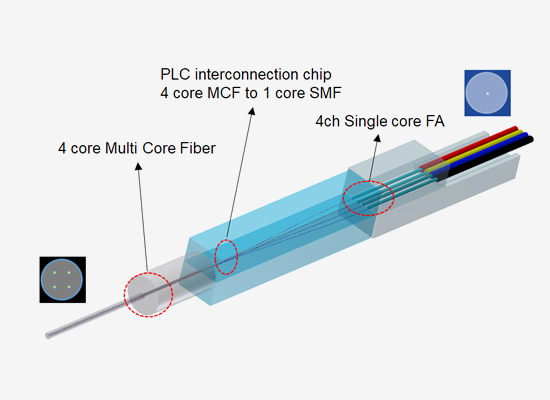

Designed for combining multicore fiber with single-core fiber, it is installed in AI data center connections, reducing fiber count and enabling high-capacity transmission.
| Parameter | Unit | 4ch |
|---|---|---|
| Operation Wavelength | nm | 1310, 1550, 1625 |
| Multicore Fiber Spacing (Input) | um | 40 |
| Insertion Loss (without connector) |
≤ dB | 0.5 (P) / 0.7 (A) / 1.0 (S) |
| Return Loss | ≥ dB | 55 |
| Cross Talk | ≥ dB | 45 |
| Single mode fiber type | um | G.657 A1 |
| Pigtails | - | SMF 1 – 10 meter long inside, 900um furcation tube |
| Operating Temperatures | ℃ | -5~+70 |
| Storage Temperatures | ℃ | -40~+85 |
