Star Coupler
홈 > 제품소개 > Data Center Solutions > Star Coupler
Star Coupler
- Features

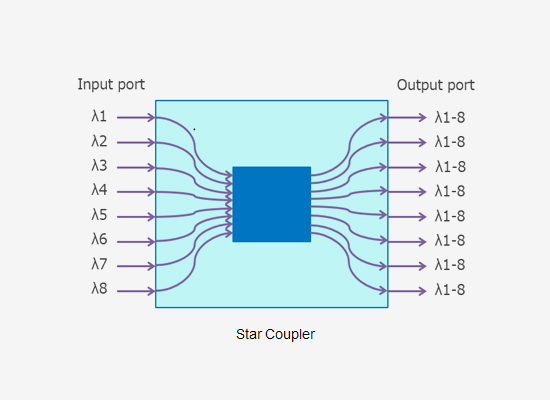

- Any input port is distributed uniformally to all ouput ports
- 4x4, 8x8
- Applications
- Co-packaged Optics, Photonic integrated circuits (PICs)
- Building local area networks (LANs)
- External Laser Source
Overview
ELS with star coupler is a key component in Co-Packaged Optics (CPO) that uses an External Laser Source (ELS) in a star topology to distribute light to multiple optical engines. In this system, a single, powerful laser module (the ELS) is located away from the primary switching chip (ASIC), and its light is distributed to the multiple PICs integrated on the same package as the ASIC. A PLC star coupler splits the light from multiple input fiber into multiple output fibers. In this application, it takes the CW laser light from the ELS and distributes it to the different optical engines on the CPO package.
| Parameter | Unit | 4x4 | 8x8 |
|---|---|---|---|
| Insertion Loss | ≤ dB | 7.5 | 12 |
| Polarization Dependent Loss | ≤ dB | 0.2 | 0.2 |
| Return Loss | ≥ dB | 40 | |
| Operation Wavelength | nm | O band | 1300 ~ 1320 |
| Angle of both sides | Degree | 90, or customized | |
| Fiber pigtail option | - | SMF or PMF pigtailed, customized | |
| Operating Temperature | ℃ | -5 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
We can offer the star coupler module based on customer’s requirement.
