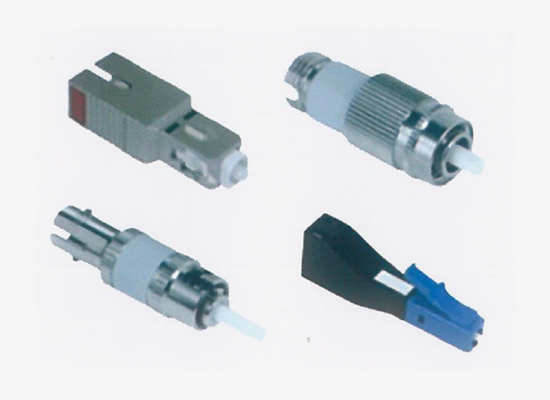

Fiber Optic Attenuator
- Features
- High power endurance
- Low back reflection
- Push-pull Type
- Customized type is available
- Applications
- Optical fiber communications
- LAN, CATV systems
- Optical network equipment
- Optical test equipment
Overview
Fiber Optic Attenuator is a device that reduces the amplitude or power signal without appreciably distorting its waveform
| Parameter | Unit | Value | |
|---|---|---|---|
| Connector Type | - | SC, FC, LC, ST, MPO, etc | |
| Attenuation | dB | 1 ~ 30 | |
| Operating Wavelength | nm | 1,260 ~ 1,360 / 1,460 ~ 1,625 | |
| Attenuation Tolerance | dB | ±10% on nominal attenuation value | |
| Ferrule | - | Full Ceramic | |
| Housing Material | - | Zinc nickel plated | |
| Return Loss | UPC | ≥dB | ≥55 |
| APC | ≥dB | ≥60 | |
| Operating Temperature | ℃ | -40 ~ +75 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
