CEx Module
Contact UsOverview

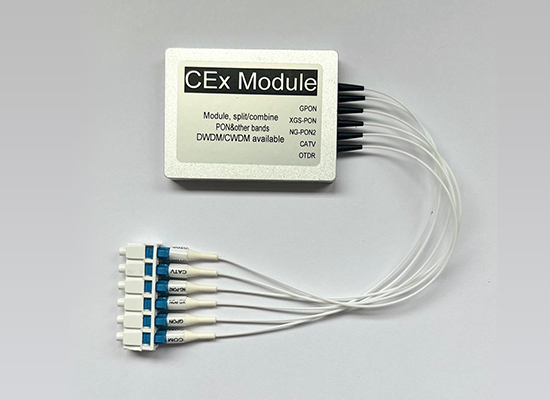

CEx Module is a customized optical module based on 3-port WDM devices, and other components integrated.
| Parameters | Unit | Values | |
|---|---|---|---|
| Operating Wavelength | nm | 1,260 ~ 1,660 | |
| Channel Wavelength | GPON | nm | 1,290 ~ 1,330 |
| XG-PON | 1,480 ~ 1,500 | ||
| NG-PON2 | 1,260 ~ 1,280 1,575 ~ 1,581 |
||
| 1,524 ~ 1,544 1,596 ~ 1,603 |
|||
| CATV | 1,550 ~ 1,560 | ||
| OTDR | 1,640 ~ 1,660 | ||
| IL | Com to GPON | nm | ≤0.8 |
| Com to XG-PON | ≤1.1 | ||
| Com to NG-PON2 | ≤1.4 | ||
| Com to CATV | ≤1.7 | ||
| Com to OTDR | ≤2.0 | ||
| Isolation | GPON Port | nm | ≥30 |
| XG-PON Port | ≥30 | ||
| NG-PON2 Port | ≥30 | ||
| CATV Port | ≥30 | ||
| OTDR Port | ≥15 | ||
| Ripple | dB | ≤0.3 | |
| PDL | dB | ≤0.2 | |
| PMD | ps | ≤0.2 | |
| RL | dB | ≥45 | |
| Directivity | dB | ≥50 | |
| Handing Power | mw | ≤500 | |
| Operating Temperature | ℃ | -10 to +70 | |
| Storage Temperature | ℃ | -40 to +85 | |
| Parameters | Specifications | Values |
|---|---|---|
| Fiber Type | Corning SMF28e+® or equivalent，900um loose tube | - |
| Optical Connector (All port) | LC/UPC | |
| Fiber Length | 1.1 ± 0.1m | 白色 |
