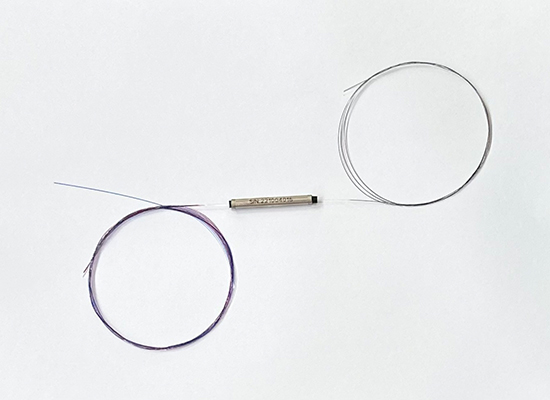

6port 2x4 MM Coupler
- Features
- Single fusion compact size
- Low PDL
- Wavelength independent
- Highly stable and reliable
- Customized type available
- Applications
- Telecommunication
- CATV network
- Subscriber loop
- Local area network
| Parameters | Unit | Values | |
|---|---|---|---|
| Model | MMC | ||
| Operating Wavelength | Nm | 850 ± 40nm | |
| Transmission Insertion Loss(70%) | Max | dB | 2.00 |
| Reflection Insertion Loss(30%) | Max | dB | 6.00 |
| Directivity | Min | dB | 40 |
| Operating Humidity | % | 5 ~ 95 | |
| Tensile Strength | Min | N | 5 |
| Fiber Type | 250um MM OM4 | ||
| Fiber Length | m | 1.0 ± 0.1 | |
| Connector Type | / | ||
| Power Handling | dB | mW | 300 |
| Operating Temperature | ℃ | 0 ~ +40 | |
| Storage Temperature | ℃ | -10 ~ +70 | |

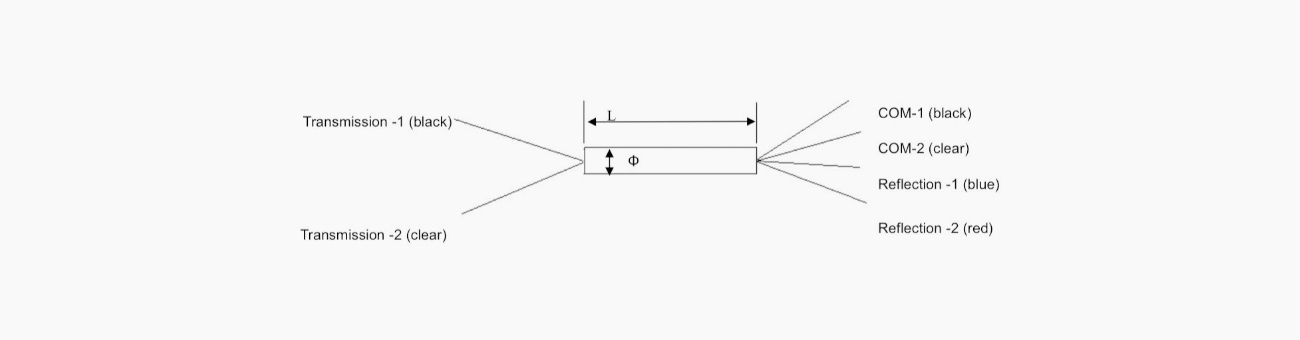

| Package Dimension(ФxL) | Max | mm | Ф3.6 * 28mm(Glass) |
