100GHz Gaussian & Flat-top
문의하기Overview
Arrayed Waveguide Grating(AWG) is a cost-effective, high-performance DWDM Mux/Demux device operating on 100GHz channel spacing in the C and L band ITU grid, without any electrical power needed.
AAWG offers low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package.
The products are Telcordia GR-1221-CORE and GR-1209-CORE qualified, and RoHS complaint.
| Parameters | Unit | Values | |
|---|---|---|---|
| Channel Number | - | 40 | |
| Channel Spacing | GHz | 100 | |
| Channel Wavelength | nm | 1,529.553 ~ 1,560.606 | |
| Channel Frequency | THz | 192.1 ~ 196.0 | |
| Reference Passband | GHz | +-15 | |
| Wavelength Accuracy | pm | +-50 | |
| Insertion Loss | dB | ≤4.5 | |
| Insertion Loss Uniformity | dB | ≤1.5 | |
| Passband Ripple | dB | ≤1.5 | |
| Bandwidth | @1db | nm | ≥0.2 |
| Isolation | Adjacent Channels | dB | ≥0.4 |
| Non-adjacent Channels | ≥25 | ||
| Total Crosstalk | dB | ≥30 | |
| Directivity | dB | ≥21 | |
| PDL | dB | ≤40 | |
| PMD | ps | ≤0.5 | |
| Return Loss | dB | ≤0.5 | |
| Chromatic Dispersion | ps/nm | ≥40 | |
| Continuous Optical Power | mw | +-20 | |
| Operating Temperature | ℃ | -5 to +65 | |
| Storage Temperature | ℃ | -40 to +85 | |
| Relative Humidity | % | 5 to 90 | |
| Parameters | Unit | Values | ||
|---|---|---|---|---|
| Channel Number | - | 40 | 48 | |
| Channel Spacing | GHz | 100 | 100 | |
| Channel Wavelength | nm | C21 ~ C60 | C14 ~ C61 | |
| Channel Frequency | THz | 192.1 ~ 196.0 | 191.4 ~ 196.1 | |
| Reference Passband | GHz | ±0.1 | ||
| Wavelength Accuracy | pm | ±50 | ||
| Insertion Loss | dB | ≤5.5 | ||
| Insertion Loss Uniformity | dB | ≤1.5 | ||
| Passband Ripple | dB | ≤0.5 | ||
| Bandwidth | @1db | nm | ≥0.4 | |
| @3db | nm | ≥0.6 | ||
| Isolation | Adjacent Channels | dB | ≥25 | |
| Non-adjacent Channels | ≥30 | |||
| Total Crosstalk | dB | ≥21 | ||
| Directivity | dB | ≥40 | ||
| PDL | dB | ≤0.5 | ||
| PMD | ps | ≤0.5 | ||
| Return Loss | dB | ≥40 | ||
| Chromatic Dispersion | ps/nm | +-20 | ||
| Continuous Optical Power | mw | ≤500 | ||
| Operating Temperature | ℃ | -5 to +65 | ||
| Storage Temperature | ℃ | -40 to +85 | ||
| Relative Humidity | % | 5 to 90 | ||
| Parameters | Specifications | Unit | |
|---|---|---|---|
| Fiber Type | SMF-28e With 900um White Loose tube fiber | ||
| Fiber Length | Common Fiber | 500 ± 50 | mm |
| Ribbon Fiber | 500 ± 50 | mm | |
| Fan-out | 500 ± 50 | mm | |
| Optical Adaptors(all port) | LC/UPC | ||

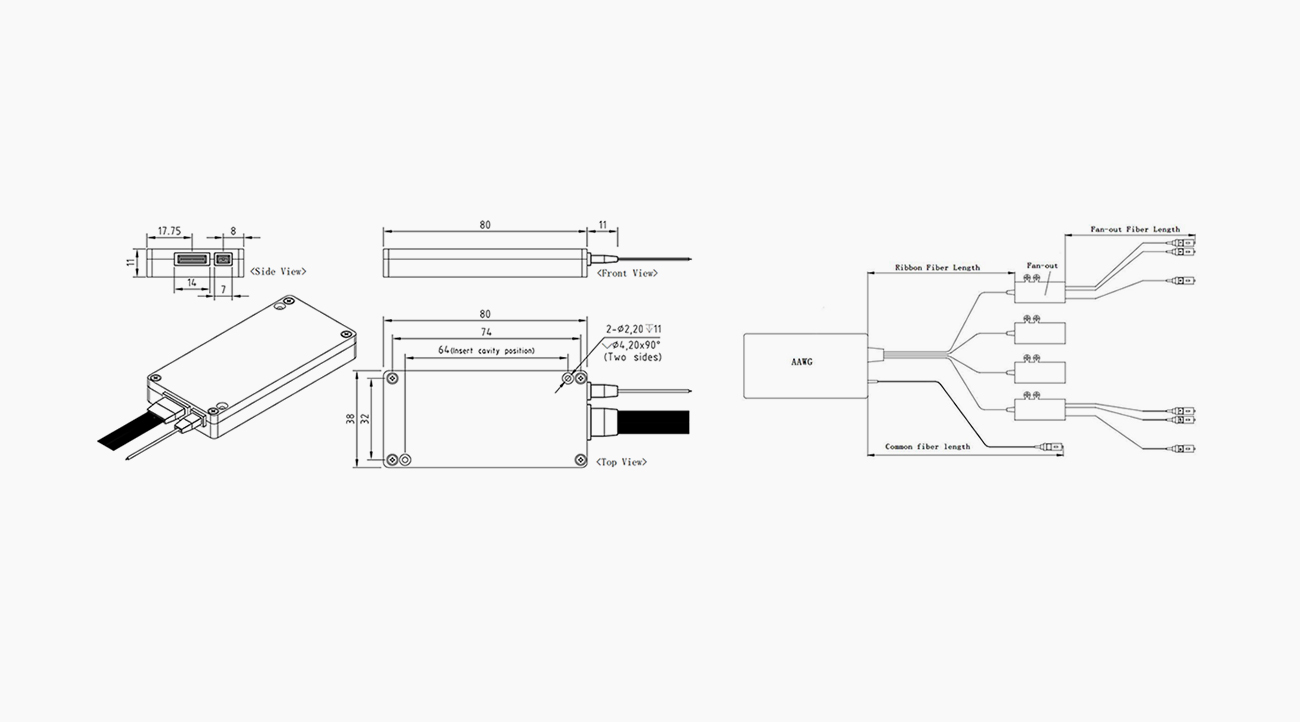

Nano type

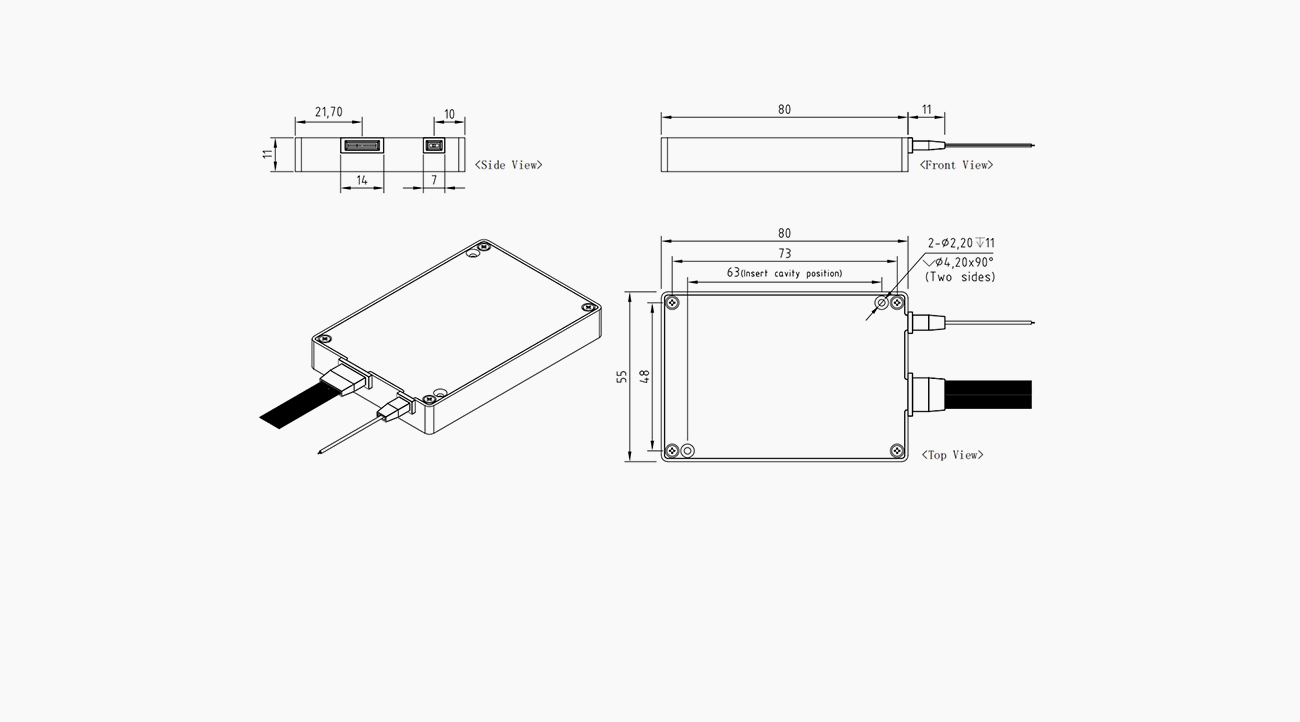

Mini type

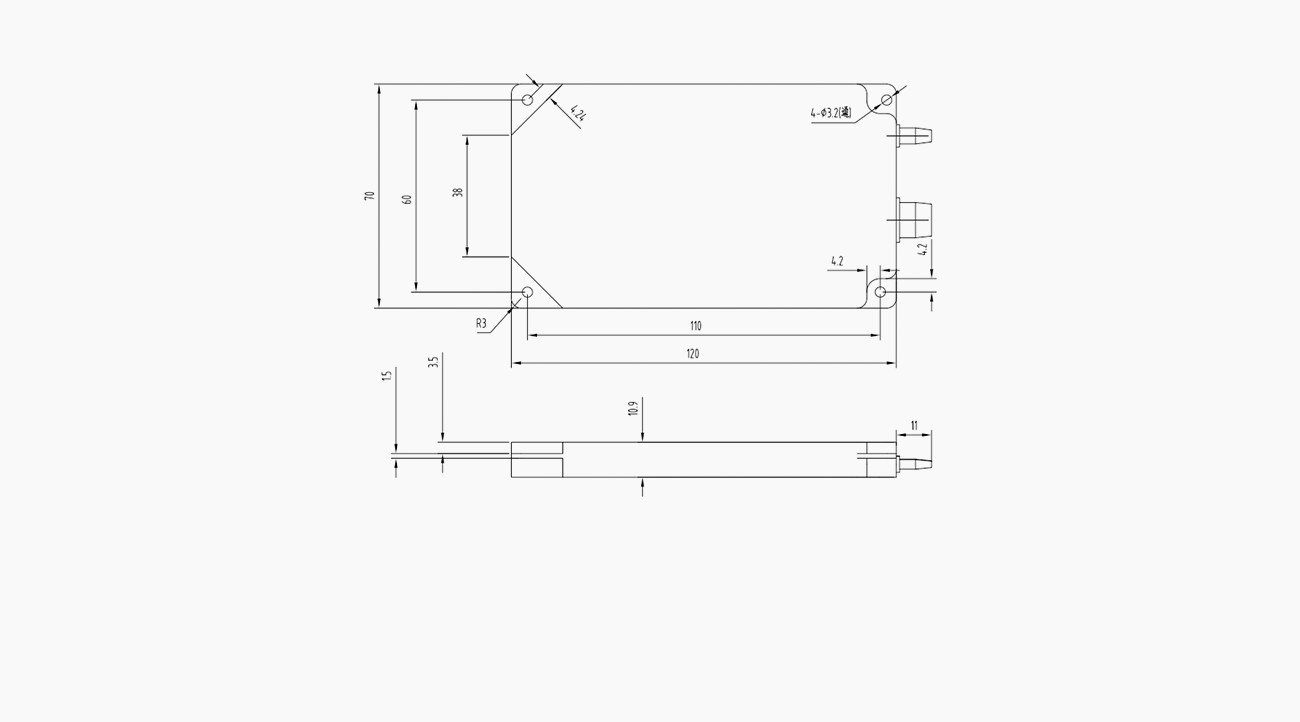

Standard type
