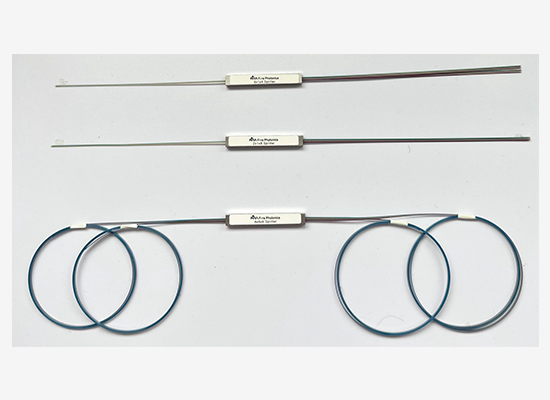

Arrayed PLC Splitter
문의하기| Parameters | Unit | Specifications | |||
|---|---|---|---|---|---|
| 2*1*8 | 4*1*4 | 4*4*4 | |||
| Insertion Loss | Max | dB | 10.1 | 7.0 | 8.5 |
| Polarization Dependent Loss | Max | dB | 0.3 | 0.3 | 0.4 |
| Return Loss | Min | dB | 55 | ||
| Directivity | Min | dB | 55 | ||
| Operating Temperature | ℃ | -40 ~ 85 | |||
| Storage Temperature | ℃ | -40 ~ 85 | |||
| Operating Humidity | Max | 95% RH | |||
| Storage Humidity | Max | 95% RH | |||
| Parameters | Unit | Specifications | |||
|---|---|---|---|---|---|
| 2*1*8 | 4*1*4 | 4*4*4 | |||
| SUS Case Dimension | Width | nm | 7(±0.5) | ||
| Height | nm | 4(±0.5) | |||
| Length | nm | 55(±0.5) | |||
| Input Fiber Type | - | 4ch Ribbon | 8ch Ribbon | ||
| Output Fiber Type | - | 8ch Ribbon(ISO Color) | |||
| Input / Output Length | mm | 1,000(±50) | |||
| Connector Type | - | None | |||
